Object recognition + people counting
These unique controllers are designed for special applications related to object recognition and people counting, helping to increase elevator safety and efficiency.

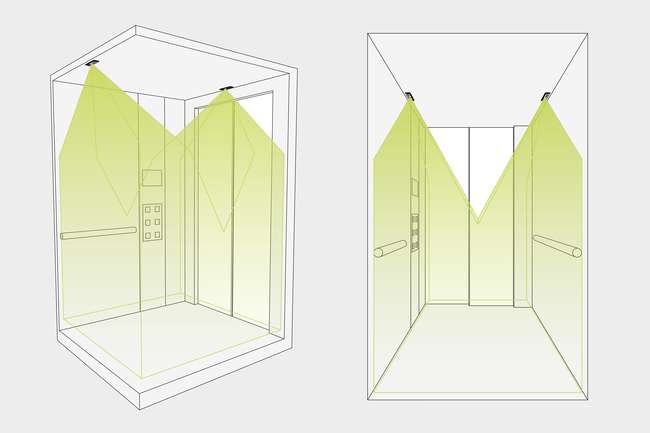

Both controllers are connected to cegard/Smart light curtains collecting the desired data and can communicate directly with the elevator controller.
- The OR controller (Object Recognition) recognizes objects such as hospital beds and wheelchairs to prioritize rides.
- The PC controller (People Counting) counts passengers to provide valuable insights into building elevator traffic or feed data into dispatcher systems.
Both controllers can be programmed to recognize other types of objects tailored to your specific needs, such as transport robots or bicycles.
应用
- OR controller (CGSM-B-OR1) for the recognition of hospital beds and wheelchairs to enable priority runs
- PC controller (CGSM-B-PC1) for people counting to enable insights into people flow in the building or for dispatcher systems
产品特性
- Designed for special applications based on object recognition and people counting
- Easy installation by any elevator technician (dynamic mounting)
- Semiconductor IOs and CAN-Bus interface for easy communication with the elevator controller
- Suitable for elevators with two entrances when complimented with an extension module
- Depending on the chosen configuration, capable of fulfilling the code requirements of ASME A17.1-2016 / CSA B44-16 and earlier, ASME A17.1-2019 / CSA B44-19 and later, ASME A17.5-2019 / CSA B44.1:19 and EN 81-20:2020
- Software updates for the recognition or counting of other object types optionally available
